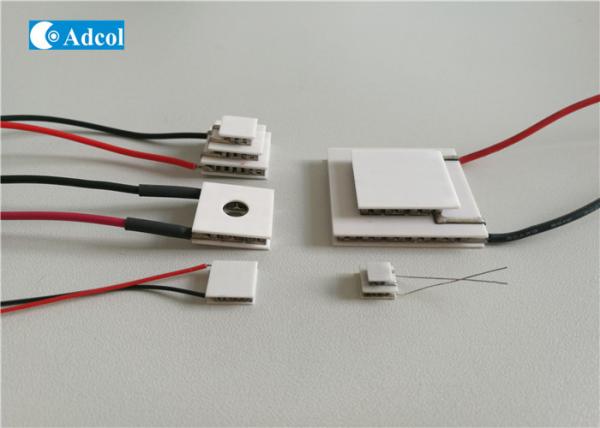

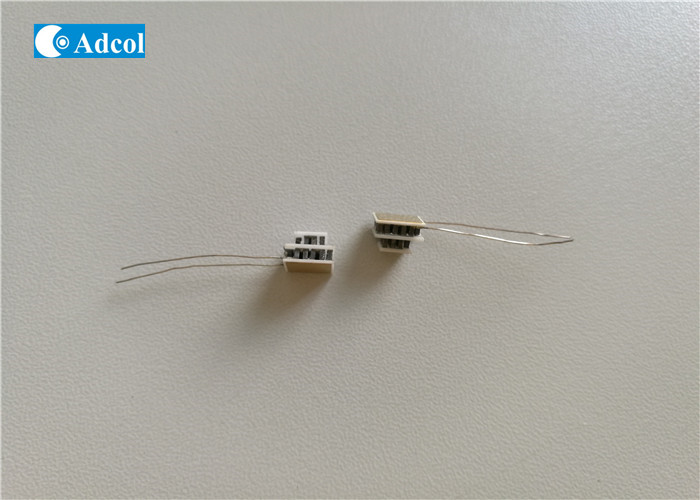

    ISO9001 Multi Stage Peltier Cooler Thermoelectric Module For Electronic Cooling

    Ask Lasest Price
    Brand Name : Adcol
    Model Number : 2CP 040 065-31-17
    Certification : ISO9001 , CE
    Price : Negotiation
    Payment Terms : T/T , Paypal
    Supply Ability : 500pcs per month
    Delivery Time : 3 - 4 weeks
    • Product Details
    • Company Profile

    ISO9001 Multi Stage Peltier Cooler Thermoelectric Module For Electronic Cooling

    ISO9001 Multi Stage Peltier Cooler Thermoelectric Module For Electronic Cooling



    What Does Qmax Mean ?

    • Qmax is the maximum load to the thermoelectric device that produces ΔT = 0.
    • Qmax, Imax, and Vmax occur at the same operating point to produce ΔT= 0.
    • It specifies an end point on the load line.
    • Qmax does not project the maximum heat that can be handled by the thermoelectric device.
    –If the load goes beyond, the TEC will still pump the heat, but the thermal load simply winds up at an above-ambient temperature. (i.e. you have to look at different performance curve.)

    Model2CP 040 065-31-17
    Imax(A)2.1
    Qmax(W)3.11
    Vmax(V)3.8
    Th=25℃ Tmax(℃)81
    Dimension
    (mm)
    A11.5
    B11.5
    C15
    D15
    E6.6



    Quality ISO9001 Multi Stage Peltier Cooler Thermoelectric Module For Electronic Cooling for sale
